DBR10

Specifications:

  • Speaker Type: 10-inch 2-way powered loudspeaker
  • Power Output: 1,000W (Continuous: 465W)
  • Frequency Range: 55Hz – 20kHz
  • Maximum SPL: 129 dB
  • Amplifier Type: Class-D

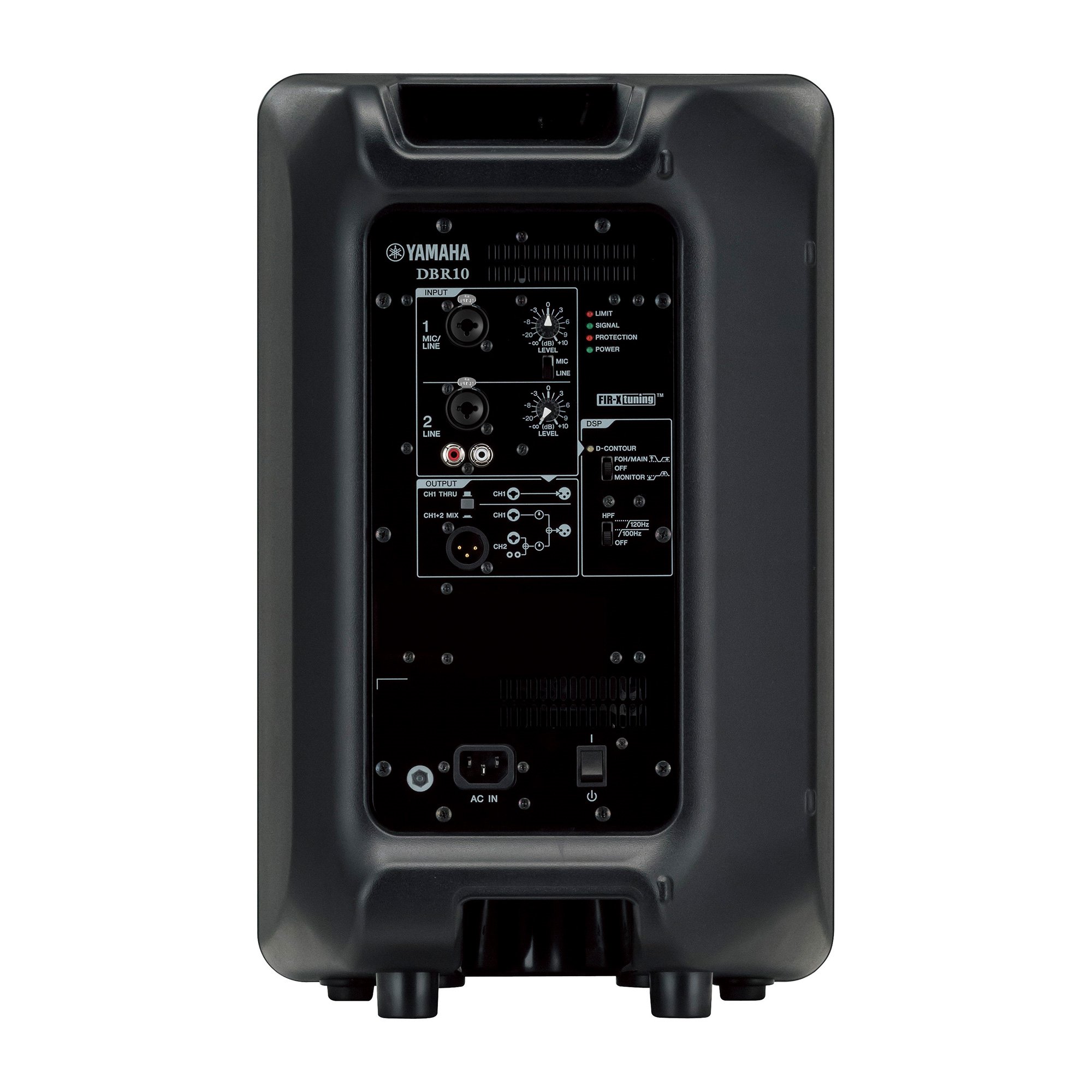

  • Inputs: 2 x Combo (XLR/TRS), 1 x Stereo RCA
  • Outputs: 1 x XLR (Mix Out)
  • Crossover Frequency: 2.1 kHz
  • Mounting Options: Floor, pole-mount, or rigging points for installations
  • Enclosure: Durable plastic cabinet with ergonomic handles
  • Dimensions (W x H x D): 308mm x 493mm x 289mm
  • Weight: 10.5 kg (23.2 lbs)

Description

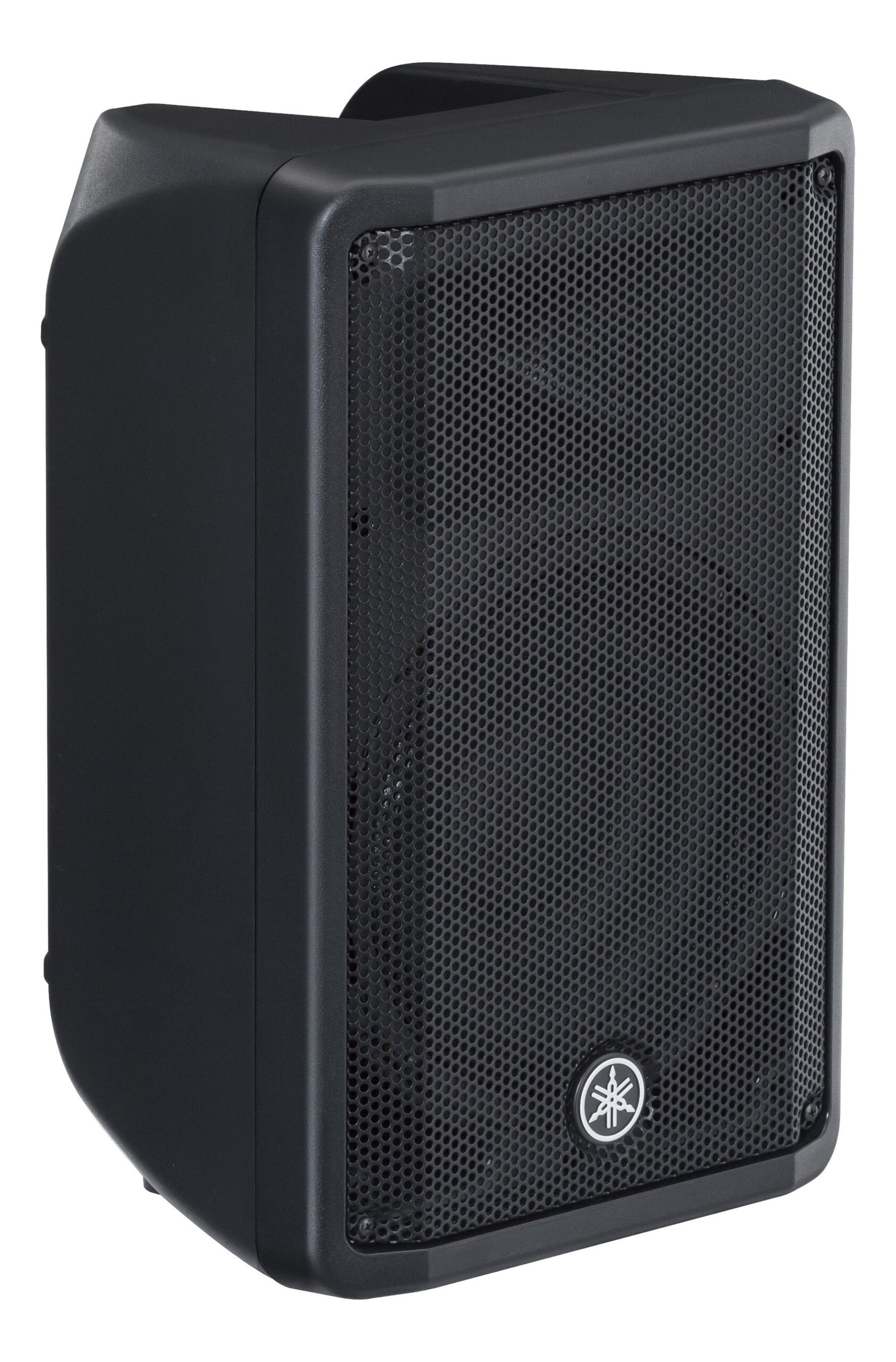

Yamaha DBR10 Powered Speaker

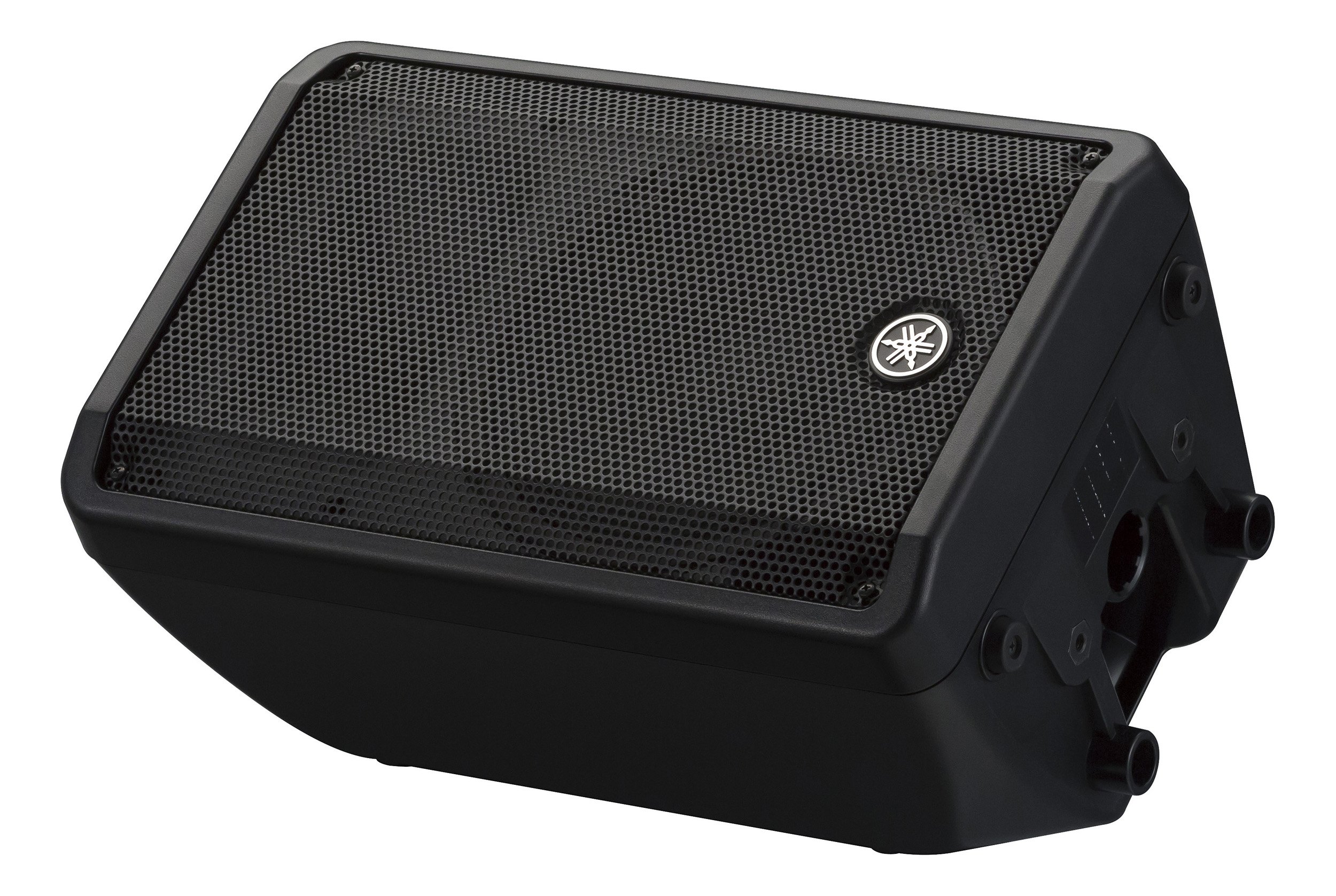

Compact, powerful, and versatile, the Yamaha DBR10 is a 10-inch active loudspeaker designed for portable PA systems, live performances, DJs, and installations. With 1,000 watts of Class-D amplification, this speaker delivers punchy bass, clear mids, and crisp highs with minimal distortion. Yamaha’s FIR-X tuning technology optimizes crossover and phase response, ensuring natural and well-balanced sound. Despite its lightweight and compact design, the DBR10 offers high SPL output, making it a reliable choice for performers and audio professionals on the go. Multiple mounting and positioning options provide flexibility for any setup, whether on a pole, as a floor monitor, or in a fixed installation.
