DM7

Specifications:

  • Input mixing channels: 120 mono
  • Buses: 48 Mix + 12 Matrix + 2 Stereo
  • Display: 12.1″ multi-touch screen x 2, 7″ multi-touch screen x 1
  • Faders: 28 (12 + 12 + 4)

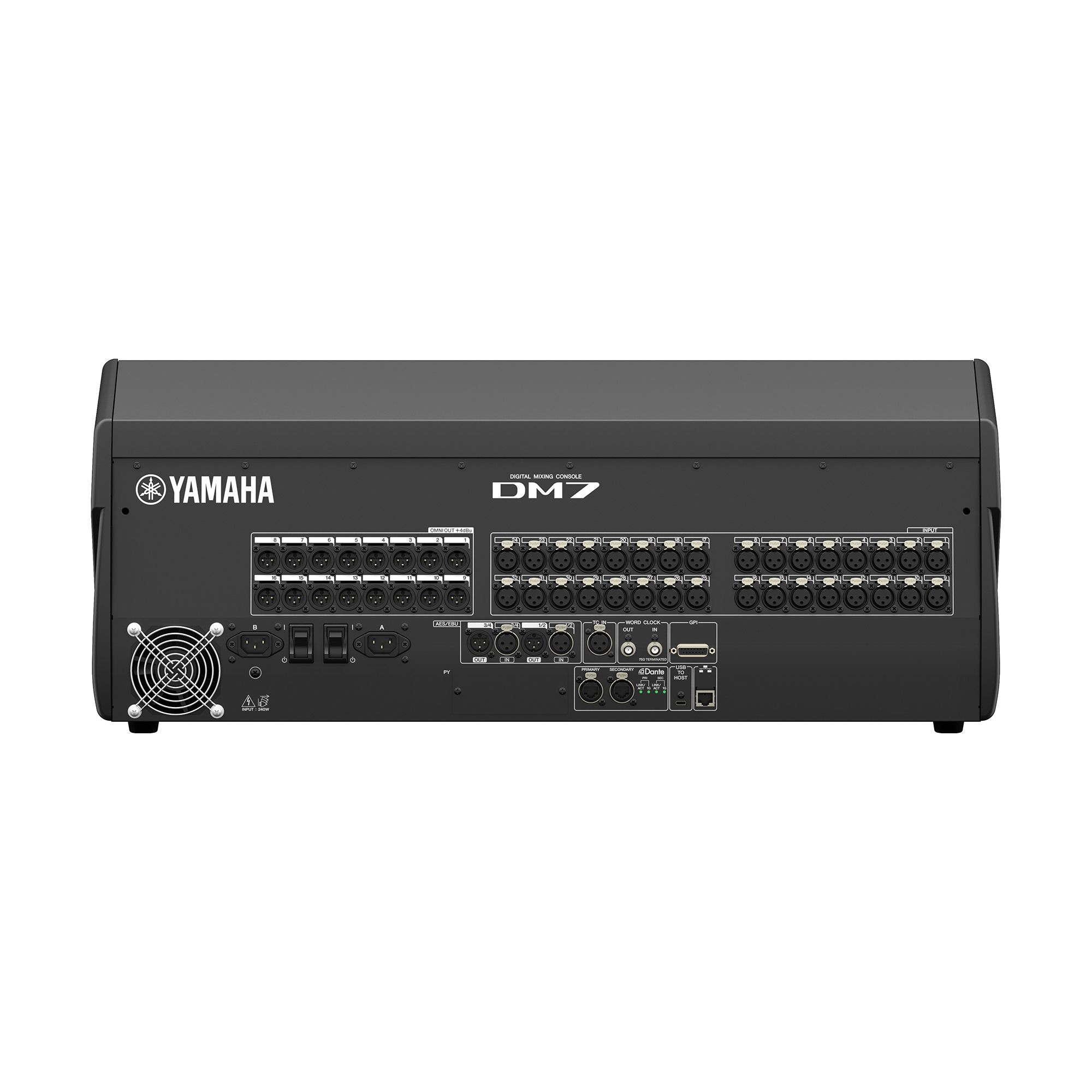

  • Analog I/O: 32 inputs / 16 outputs
  • Dante: 144 in / 144 out
  • AES/EBU: 2 in / 2 out (with SRC)
  • Slot: PY Slot x 1
  • USB Audio Interface: 18 in / 18 out
  • Power supply: Redundant power supply built-in
  • Power consumption: 240 W
  • Dimensions (W x H x D): 793 mm x 324 mm x 564 mm (31.3″ x 12.8″ x 22.2″)
  • Net Weight: 23.5 kg (51.8 lb)

Description

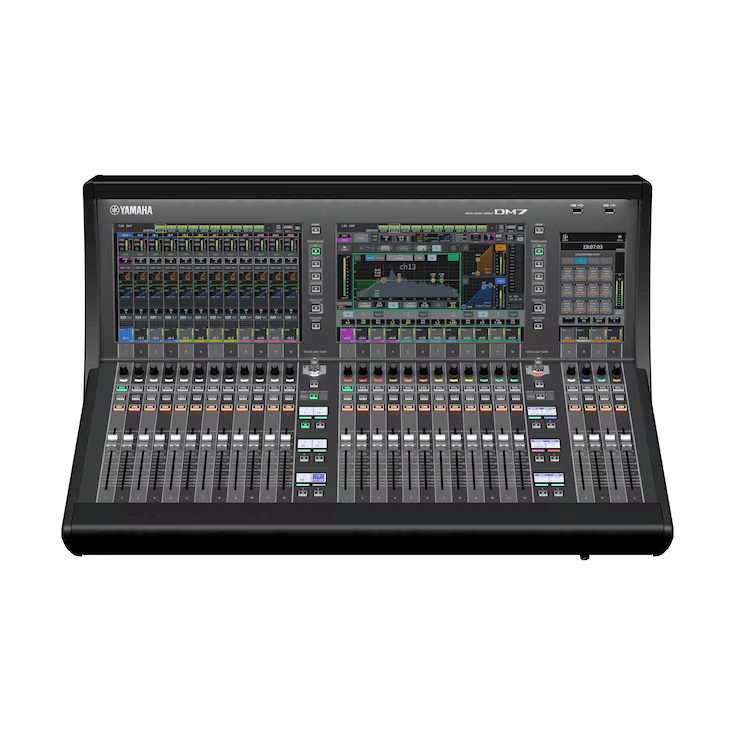

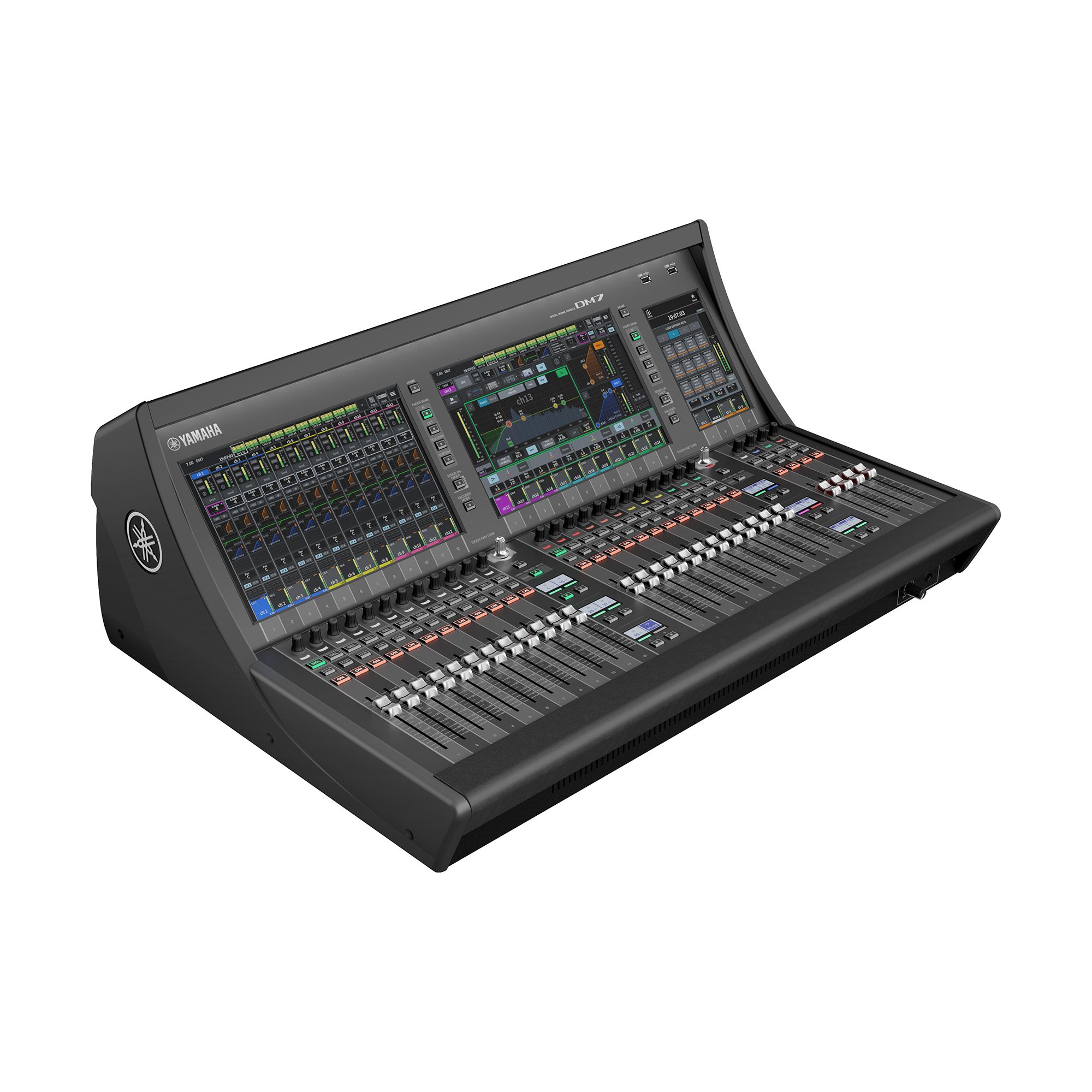

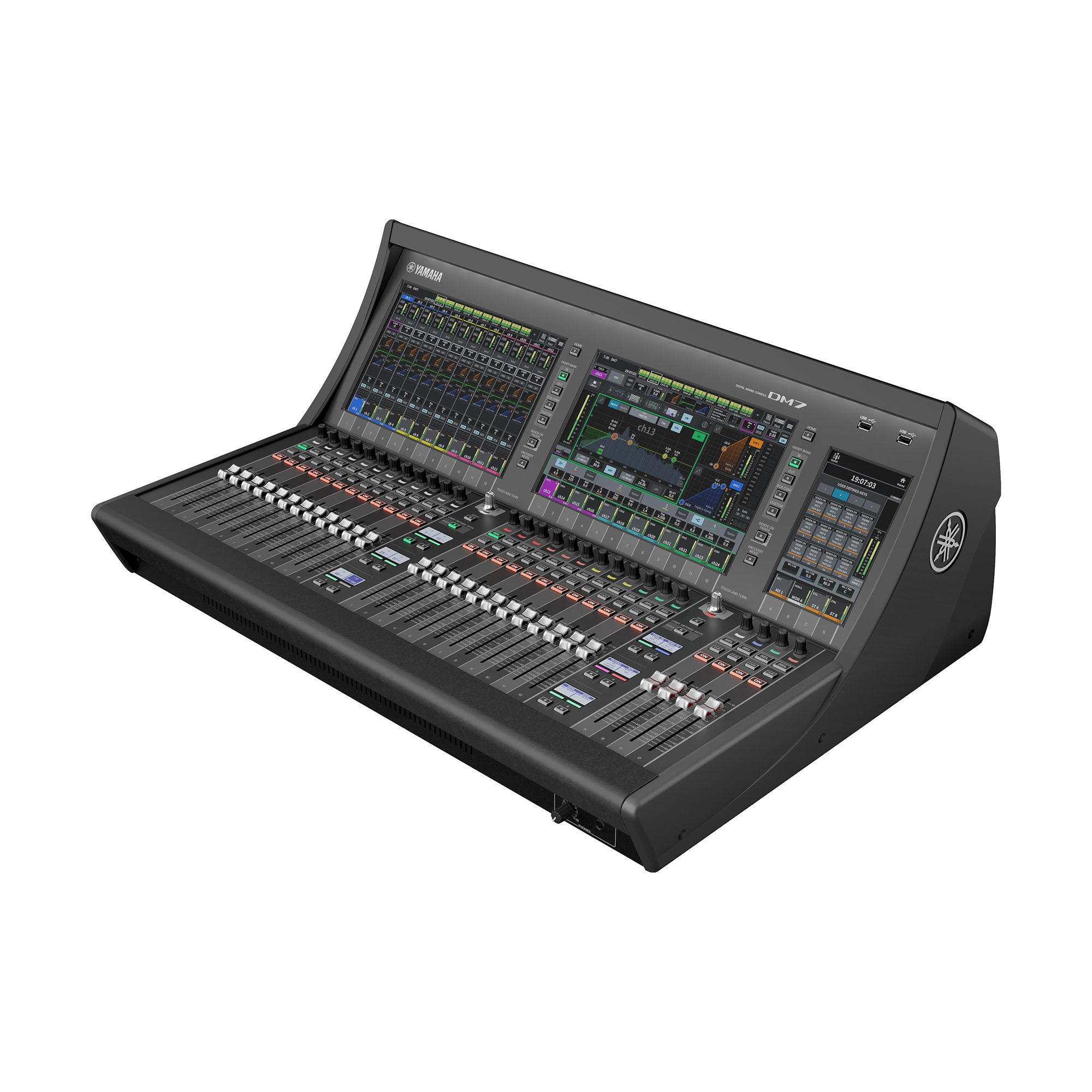

The Yamaha DM7 Digital Mixing Console redefines audio mixing with its cutting-edge technology, advanced features, and sleek design. Tailored for live sound, broadcast, and studio environments, the DM7 offers exceptional versatility with 32 input channels, 16 mix buses, and 96kHz processing for crystal-clear audio fidelity.

This console features a large multi-touch screen, intuitive workflow, and customizable user layers, ensuring maximum efficiency during complex productions. The DM7 includes premium onboard effects, sophisticated EQ, and dynamics processing, all powered by Yamaha’s renowned engineering expertise. With built-in Dante audio networking, seamless system integration is a breeze, enabling enhanced flexibility for demanding setups.

Designed for professionals who demand reliability and excellence, the Yamaha DM7 delivers uncompromising performance, no matter the application.
