DM7 Compact

Specifications:

  • Input mixing channels: 72 mono
  • Buses: 48 Mix + 12 Matrix + 2 Stereo
  • Display: 12.1″ multi-touch screen x 1, 7″ multitouch screen x 1
  • Faders: 16 (12 + 4)
  • Analog I/O: 16 inputs / 16 outputs
  • Dante: 144 in / 144 out
  • AES/EBU: 1 out
  • Slot: PY Slot x 1
  • USB Audio Interface: 18 in / 18 out
  • Power supply: Redundant power supply built-in
  • Power consumption: 240 W
  • Dimensions (W x H x D): 468 mm x 324 mm x 564 mm (18.5″ x 12.8″ x 22.2″)
  • Net Weight: 16.5 kg (36.4 lb)

Description

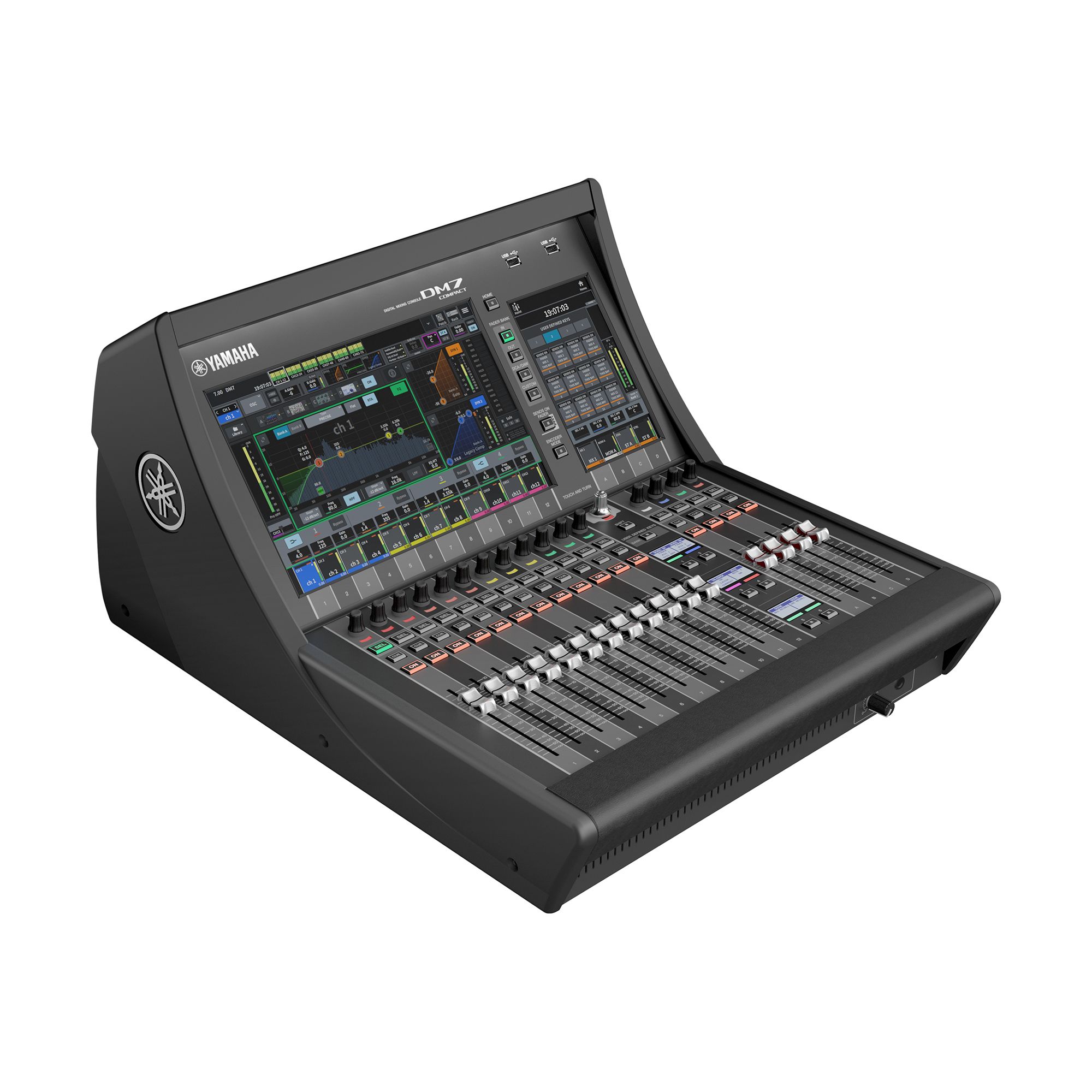

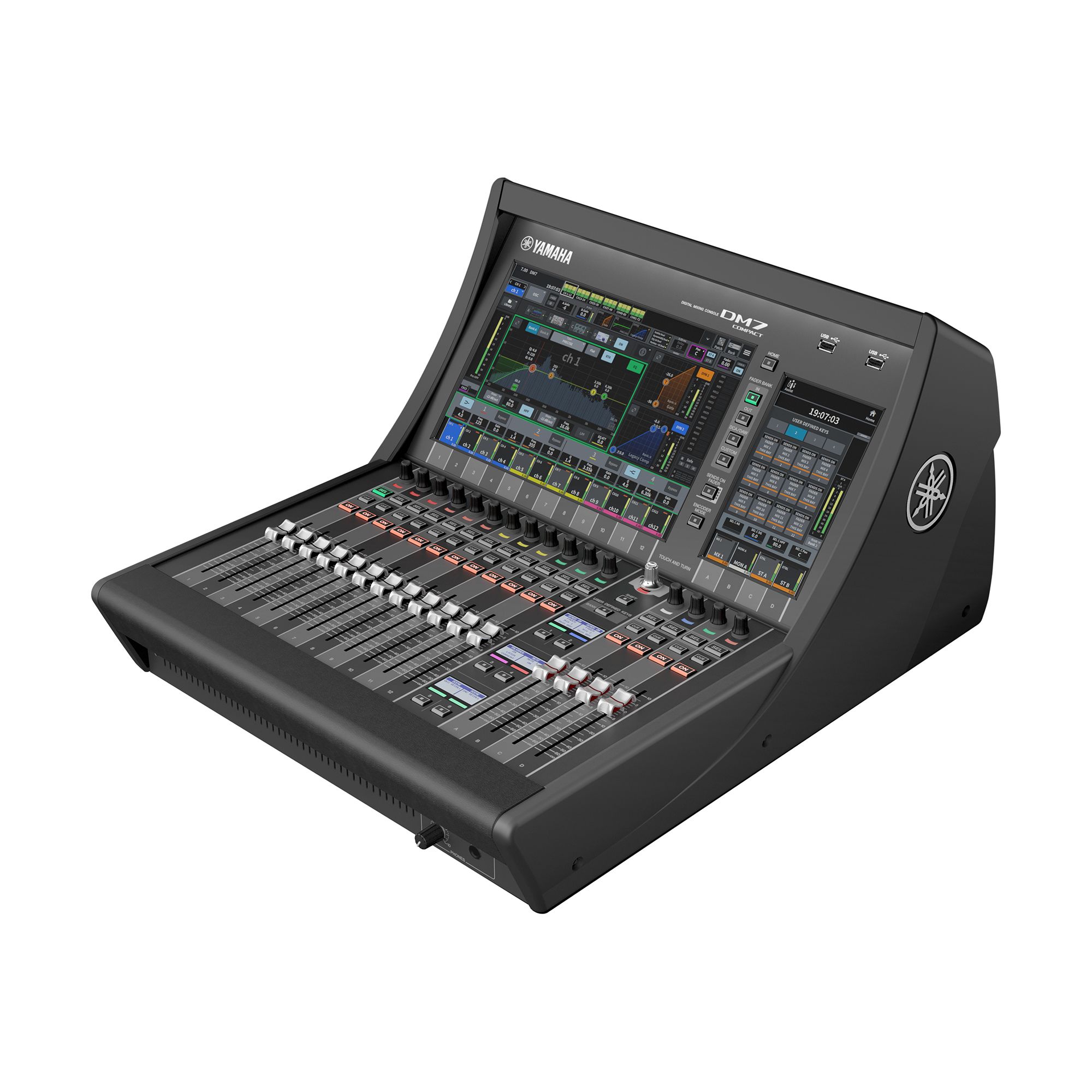

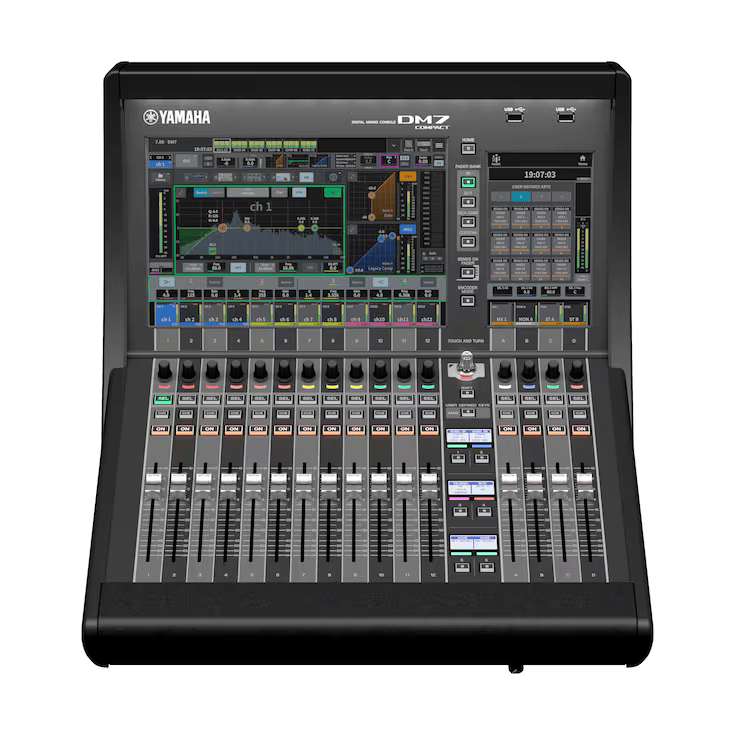

The Yamaha DM7 Compact offers all the power and innovation of the DM7 series in a space-saving design, perfect for live sound, broadcast, and studio applications where portability meets performance. Equipped with 16 input channels, 16 mix buses, and Yamaha’s renowned 96kHz audio processing, the DM7 Compact delivers professional-grade sound quality in a streamlined form.

Its intuitive interface features a multi-touch screen, customizable user layers, and ergonomic controls, ensuring fast and efficient operation. The console includes premium onboard effects, advanced EQ, and dynamics processing for precise audio shaping. With built-in Dante audio networking, the DM7 Compact seamlessly integrates into any system while maintaining a small footprint.

Designed for professionals who require flexibility without compromising performance, the Yamaha DM7 Compact is the ultimate solution for demanding mixing environments.
