DZR315-D

Specifications:

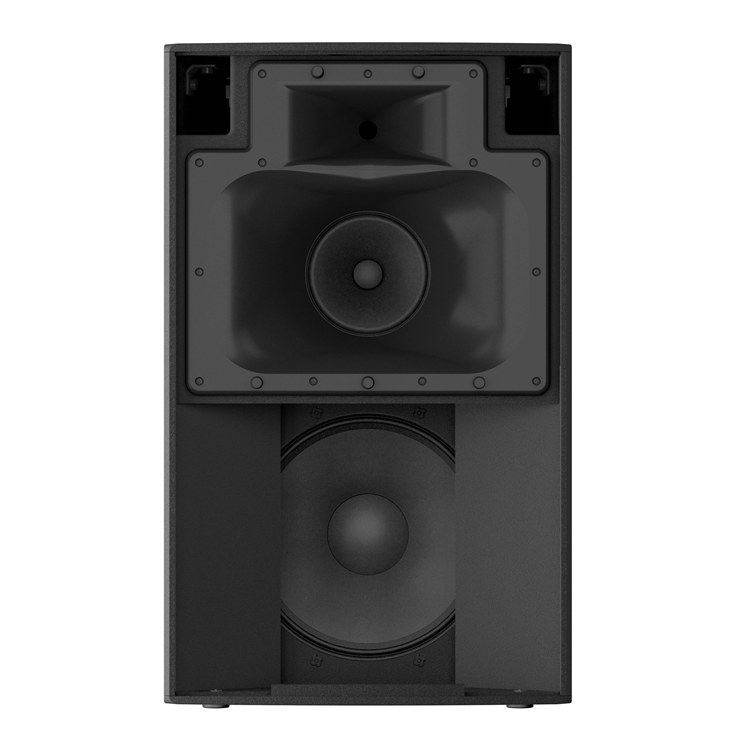

  • 3-way powered loudspeaker with a 2” HF, an 8 ” MF and a 15″ LF
  • Maximum 143dB SPL and 31Hz-20kHz frequency range is ideal for FOH main PA
  • High power 2000W Class-D amplifier module
  • 96kHz DSP and FIR filter for true high-resolution sound with super low latency
  • Features Advanced FIR-X tuning, the combination of FIR filtering and correct EQ for minimizing phase distortion
  • Equipped with Dante I/O (2in/2out) and features SRC (sample rate conversion) allowing 48kHz device compatibility
  • Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
  • D-Contour and highly reliable protection circuits
  • Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
  • Optional speaker cover (SPCVR-DZR315)
  • Durable Black or white finish
Categories: ,

Description

The Yamaha DZR315-D is a high-performance powered loudspeaker that combines superior sound quality with cutting-edge technology, making it perfect for live sound reinforcement, touring, and installed applications. Featuring a 3-way design with a 15” woofer, 8” midrange driver, and a 2” high-frequency compression driver, the DZR315-D delivers an impressive maximum SPL of 143dB with exceptional clarity and deep, powerful bass.

Equipped with advanced 96kHz DSP processing, FIR-X tuning, and a highly efficient Class-D amplifier, the DZR315-D ensures precise sound reproduction across the entire frequency range. With Dante audio networking capabilities, this speaker seamlessly integrates into complex audio setups, providing enhanced flexibility for professional audio systems. The rugged plywood cabinet, durable polyurea coating, and ergonomic design ensure reliability and portability in any environment.

From large venues to demanding live performances, the Yamaha DZR315-D delivers unmatched audio performance and network-ready convenience.
