MG16XU

Specifications:

16-Channel Mixing Console
Max. 10 Mic / 16 Line Inputs (8 mono + 4 stereo)
4 GROUP Buses + 1 Stereo Bus
4 AUX (incl. FX)
“D-PRE” mic preamps with an inverted Darlington circuit
1-Knob compressors
High-grade effects: SPX with 24 programs
24-bit/192kHz 2in/2out USB Audio functions
Works with the iPad (2 or later) through the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter
Includes Cubase Al DAW software download version
PAD switch on mono inputs
+48V phantom power
XLR balanced outputs
Internal universal power supply for world-wide use
Rack Mount Kit Included
Metal chassis
Dimensions(W×H×D): 444 mm x 130 mm x 500 mm (17.5″ x 5.1″ x 19.7″)
Net Weight: 6.8 kg (15.0 lbs.)

Categories: Analog Mixers, YAMAHA

Description

Description

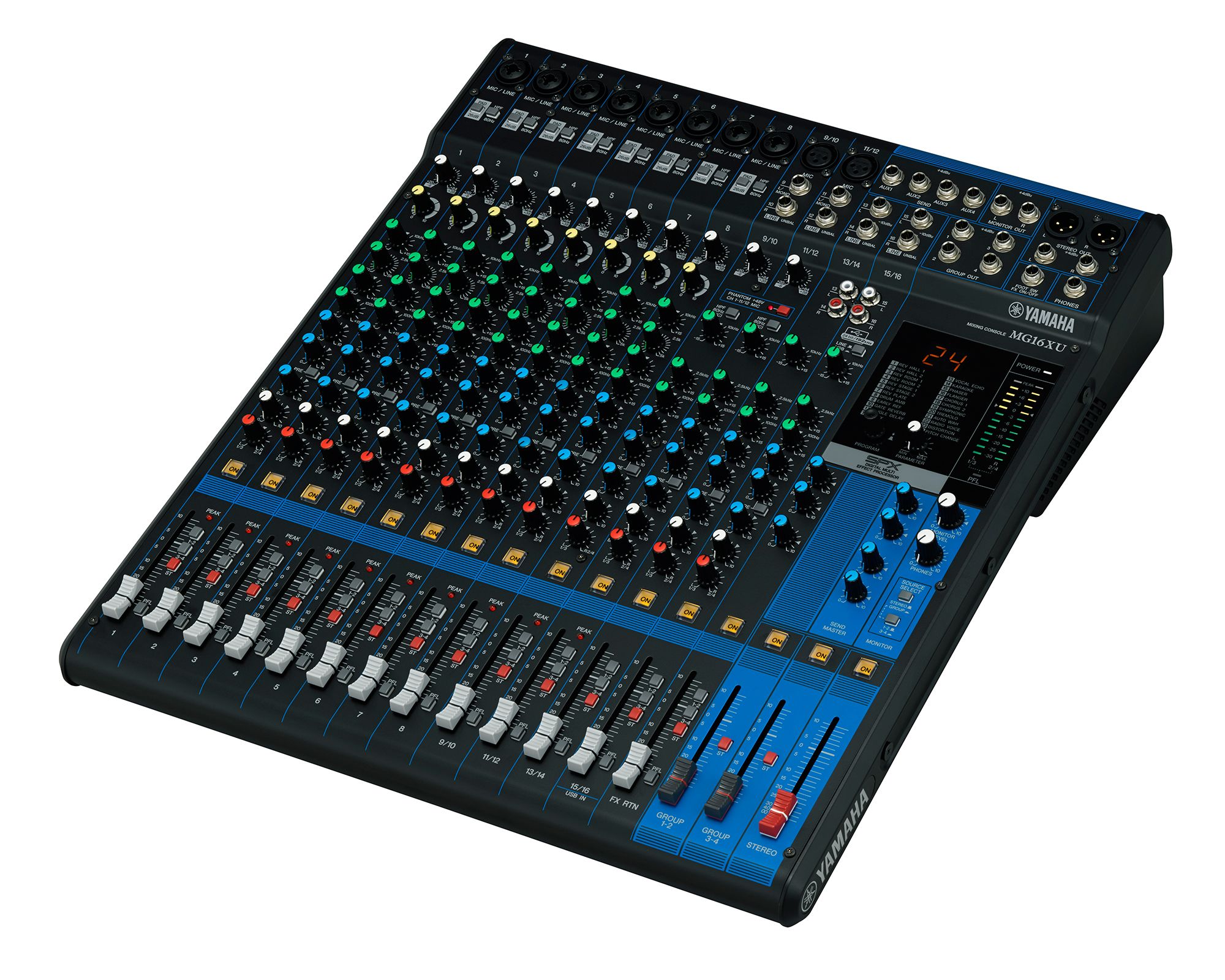

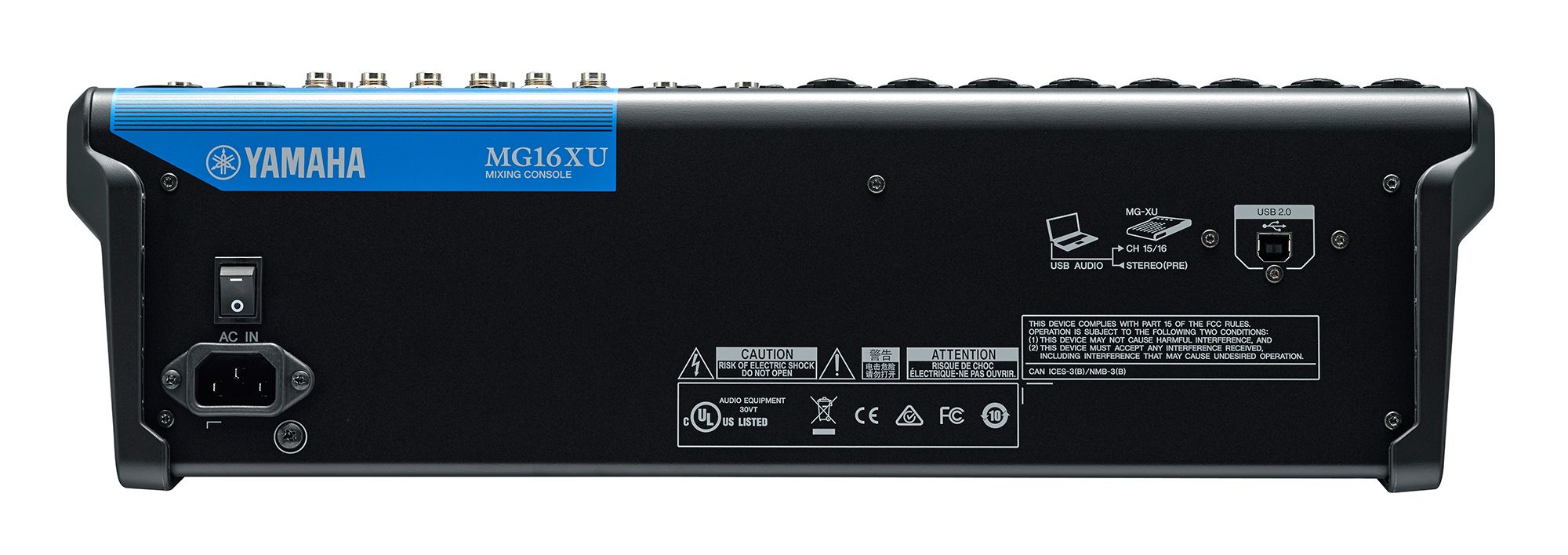

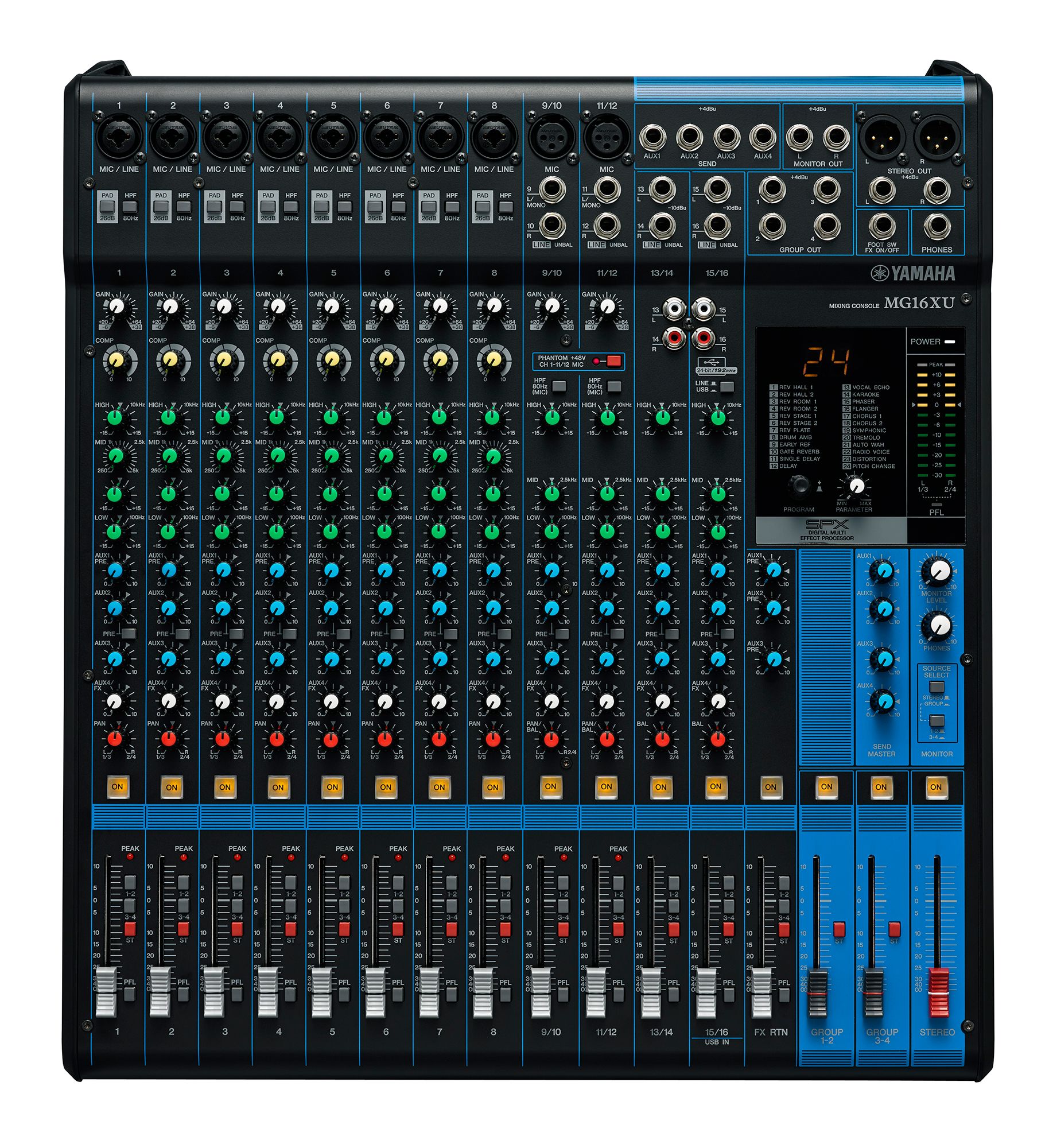

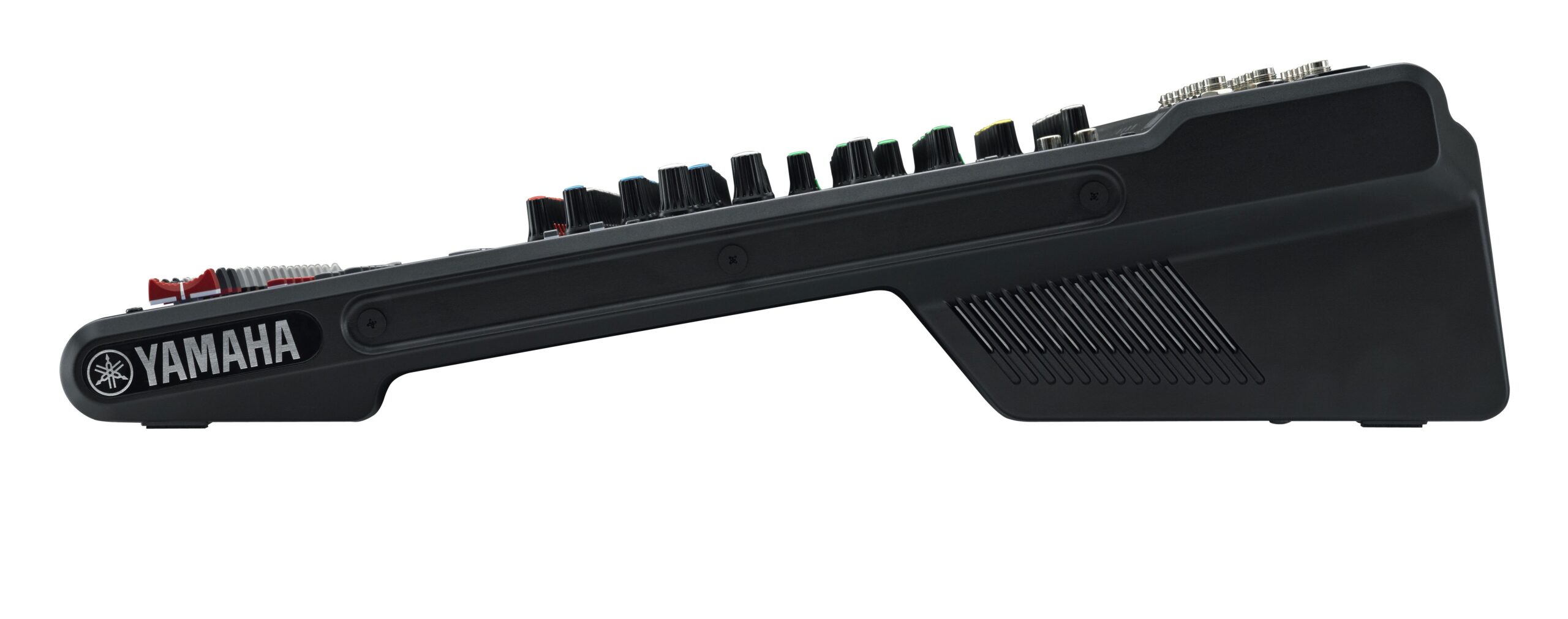

Yamaha MG16XU Mixer

The Yamaha MG16XU is a 16-channel mixing console that delivers exceptional audio performance for both live sound and studio recording. Featuring D-PRE microphone preamps, the MG16XU ensures superior sound clarity with ultra-low noise and high dynamic range. With SPX digital effects and one-knob compressors, it provides comprehensive control over audio dynamics and sound shaping. The built-in USB audio interface (24-bit/192kHz) allows for seamless integration with digital audio workstations (DAWs), making it a versatile tool for multi-track recording, live performances, and broadcast. Its robust, rugged design ensures long-lasting durability for the most demanding environments, whether on the road or in the studio.
