MG20XU

Specifications:

20-Channel Mixing Console
Max. 16 Mic / 20 Line Inputs (12 mono + 4 stereo)
4 GROUP Buses + 1 Stereo Bus
4 AUX (incl. FX)
“D-PRE” mic preamps with an inverted Darlington circuit
1-Knob compressors
High-grade effects: SPX with 24 programs
24-bit/192kHz 2in/2out USB Audio functions
Works with the iPad (2 or later) through the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter
Includes Cubase AI DAW software download version
PAD switch on mono inputs
+48V phantom power
XLR balanced outputs
Internal universal power supply for world-wide use
Rack Mount Kit Included
Metal chassis
Dimensions(W×H×D): 444 mm x 130 mm x 500 m (17.5″ x 5.1″ x 19.7″)
Net Weight: 7.1kg (15.7 lbs.)

Categories: Analog Mixers, YAMAHA

Description

Description

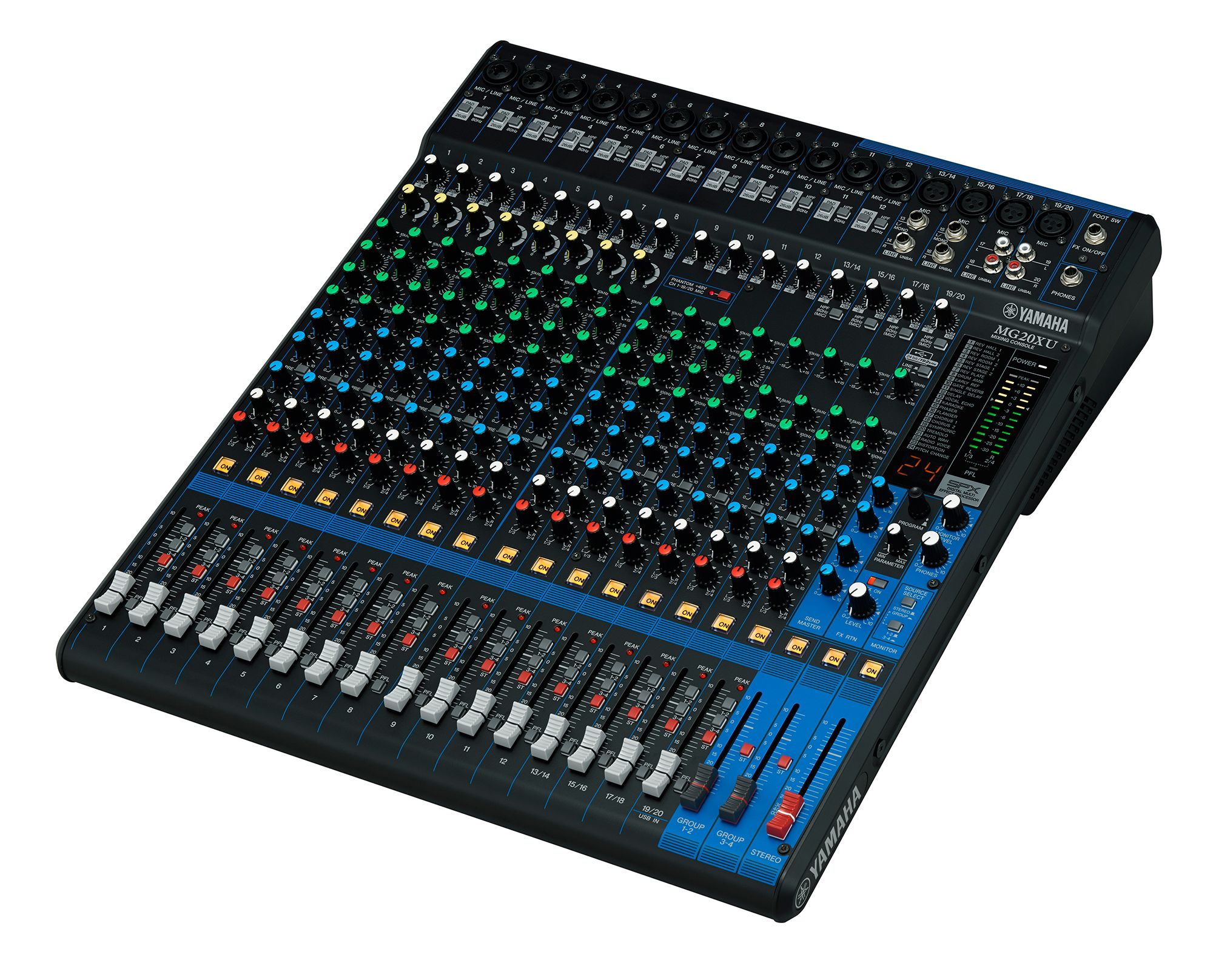

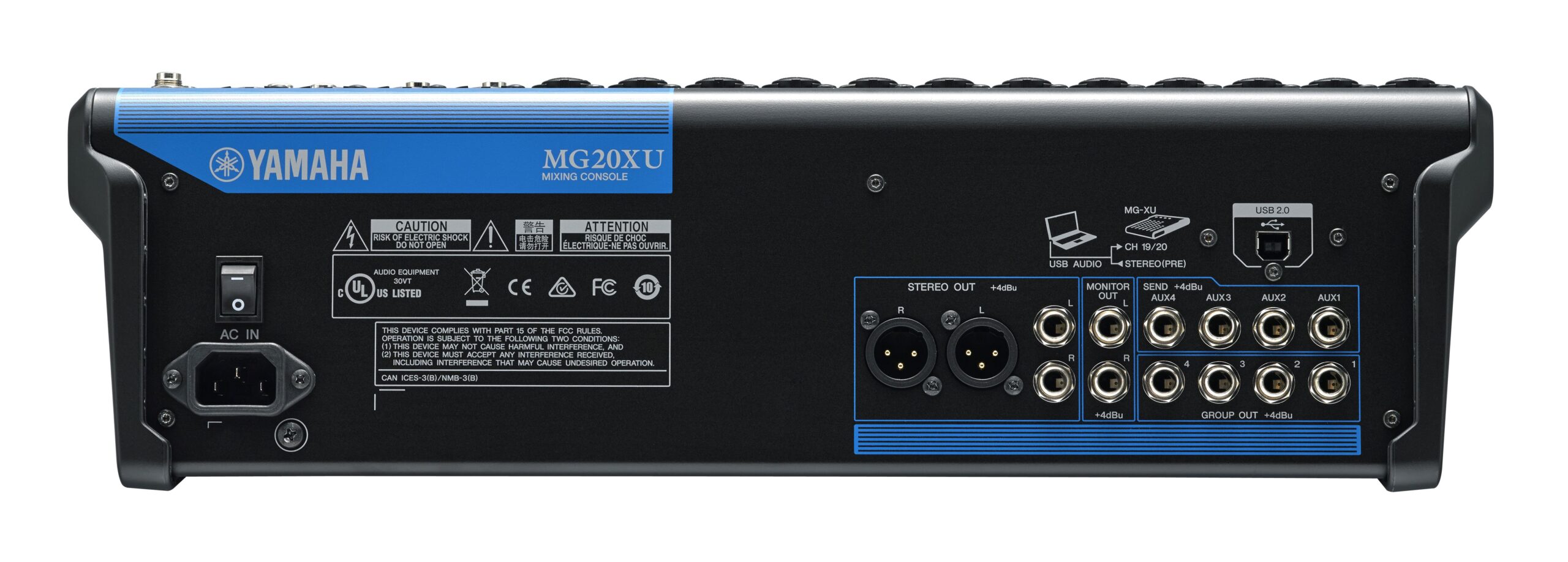

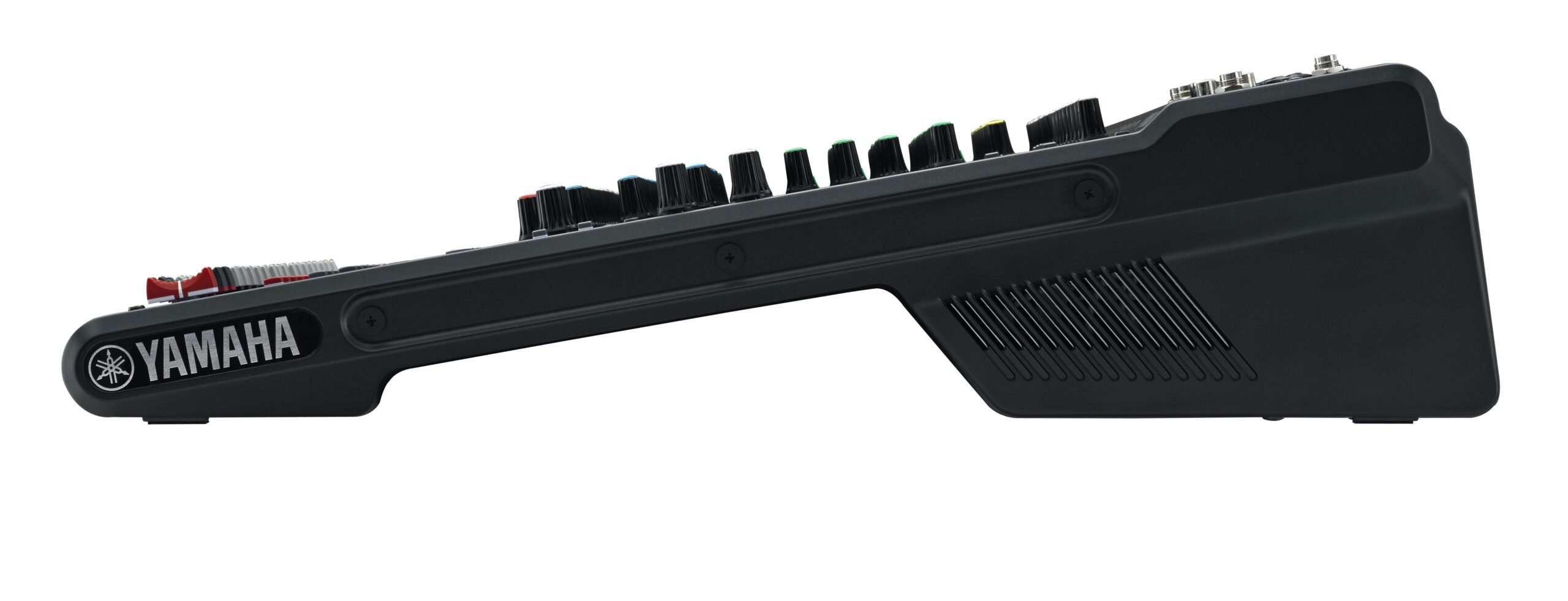

Yamaha MG20XU Mixer

The Yamaha MG20XU is a 20-channel mixing console that combines high-quality audio performance with professional features for both live sound and studio recording applications. Equipped with XLR and TRS inputs, it offers superior sound clarity and reliable mixing with ultra-low noise preamps and SPX effects processing. The built-in 24-bit/192kHz USB audio interface allows for seamless integration with digital audio workstations (DAWs). With one-knob compressors, graphic EQ, and a high-pass filter, the MG20XU provides intuitive control over each channel’s dynamics and frequency response. The rugged, compact design is ideal for touring, live gigs, and studio setups. Whether you’re mixing a live band, podcasting, or recording in the studio, the MG20XU provides the tools for top-tier performance and flexibility.
