Rio3224-D2

Specifications:

  • 32 analog inputs and 16 outputs, and 8 digital outputs.
  • Redundant connections are supported with primary and secondary connectors. Daisy chain connections are also supported.
  • Comprehensive display and local control of gain and other parameters.
  • Dual power supply units are built in for high reliability.
  • Power consumption: 120W
  • Dimensions (WxHxD): 480 x 220 x 368mm (18.9″ x 8.7″ x 14.5″)
  • Net Weight: 13.5 kg (29.8 lbs)
Categories: ,

Description

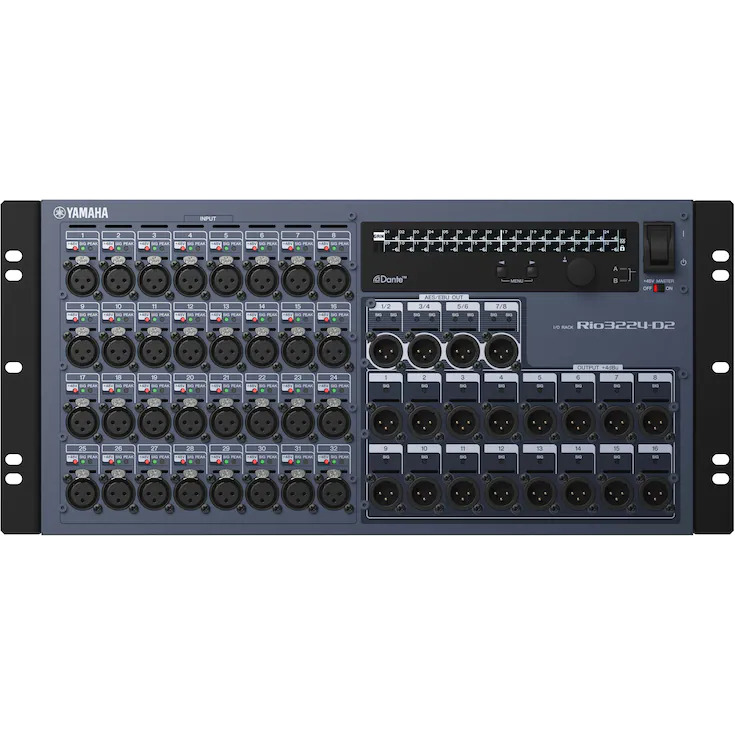

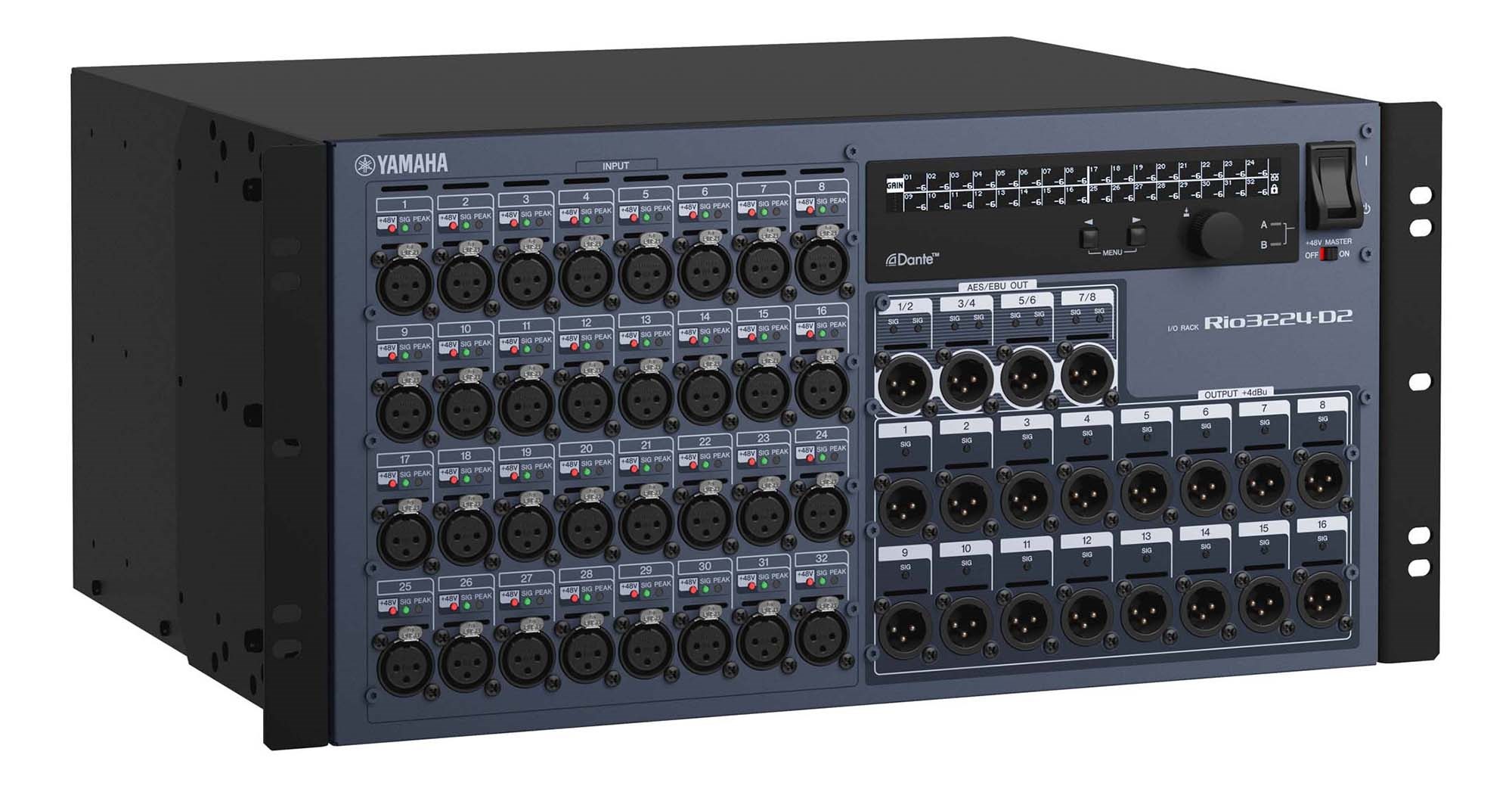

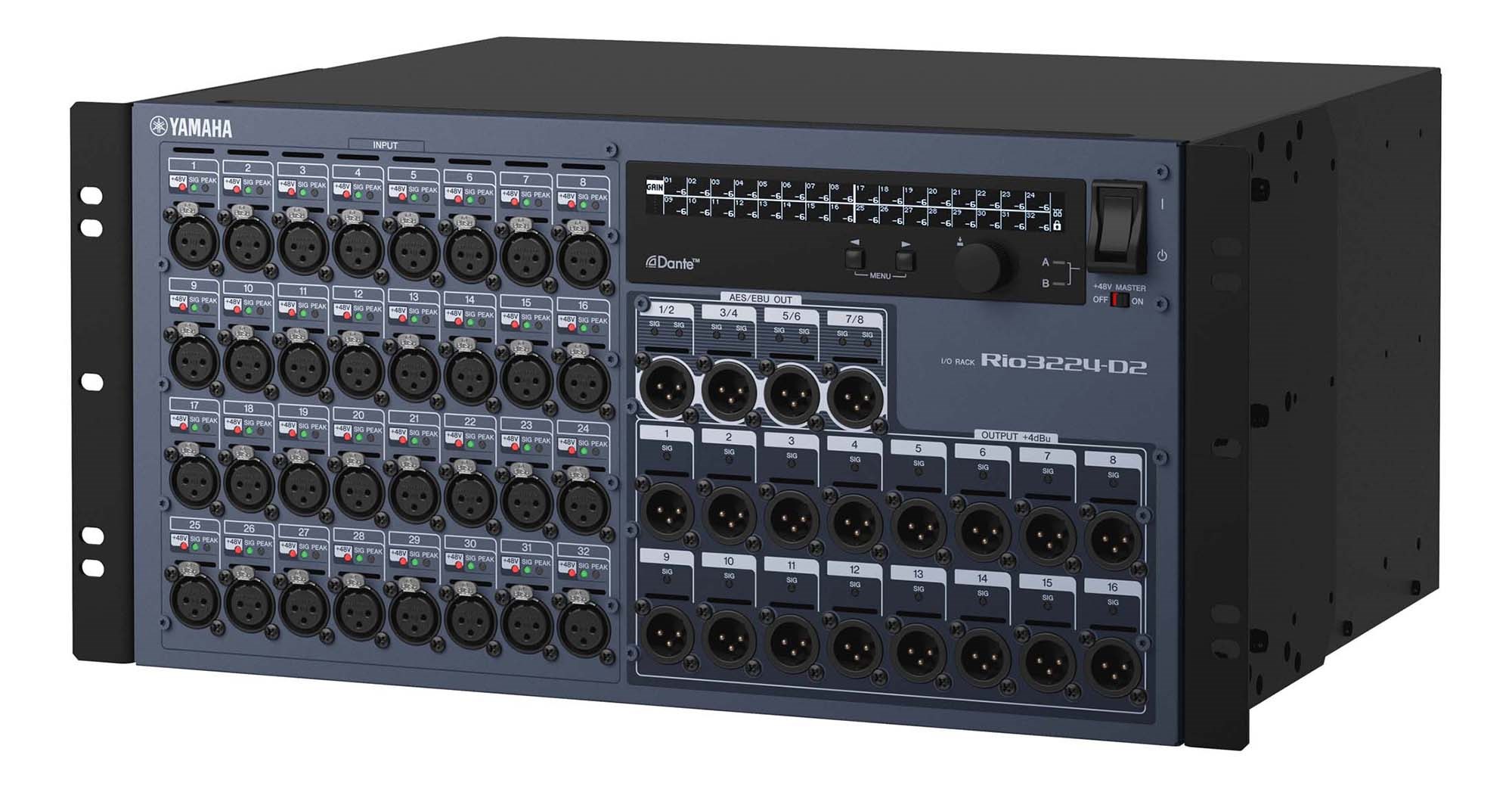

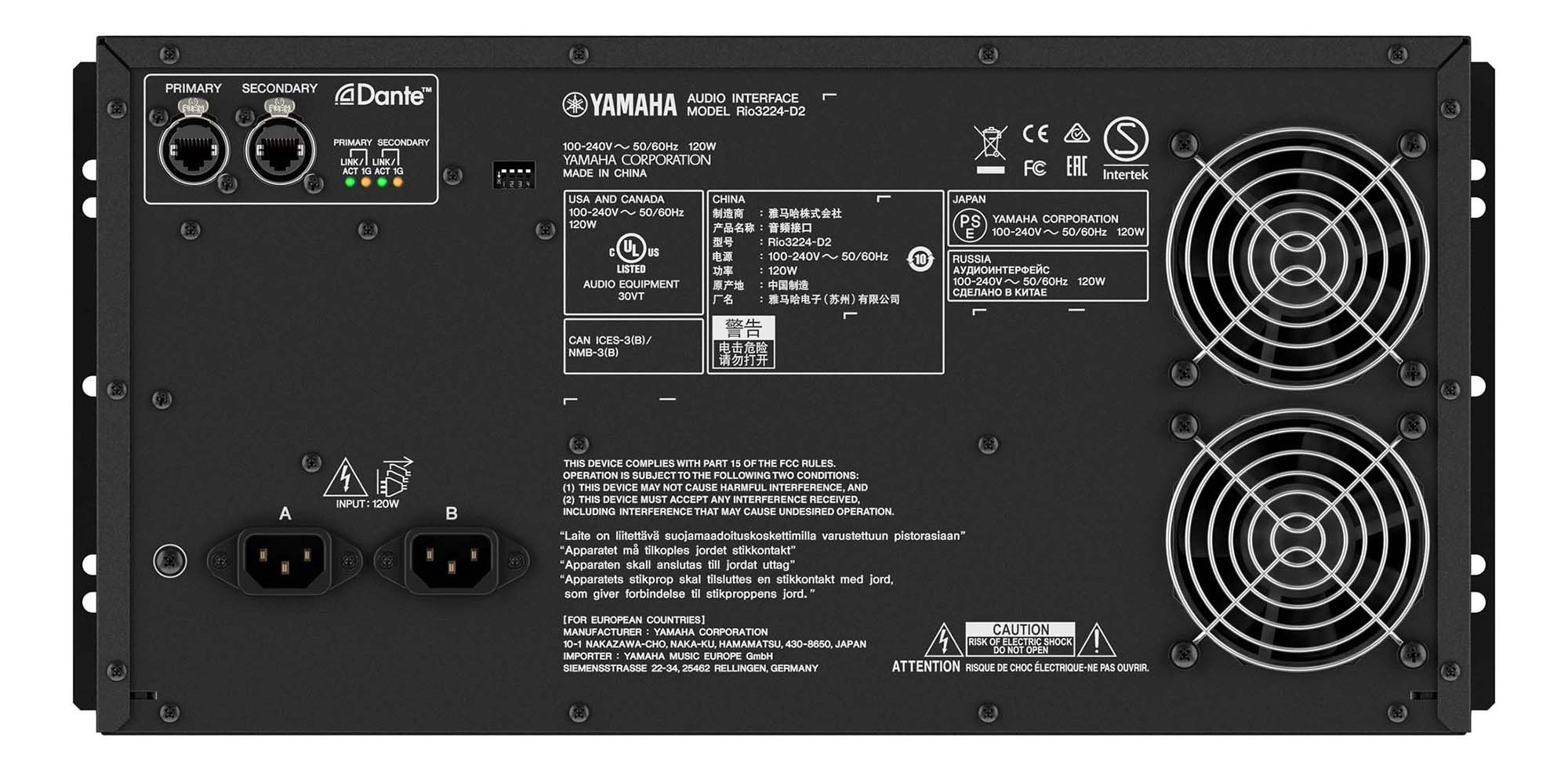

Yamaha Rio3224-D2 – 32-In / 24-Out Digital Stage Box with Dante

The Yamaha Rio3224-D2 is a high-capacity Dante-enabled I/O rack, delivering professional-grade audio performance for live sound, studio, and broadcast applications. Designed for seamless integration with Yamaha CL, QL, and RIVAGE PM series digital consoles, it offers 32 analog inputs, 16 analog outputs, and 8 digital AES/EBU outputs. This makes it an ideal solution for large-scale productions and complex audio setups.

Yamaha’s renowned natural-sounding mic preamps ensure pristine, transparent audio capture with minimal distortion. The Rio3224-D2 supports up to 96kHz sample rates, preserving sonic detail and clarity for high-resolution sound reproduction. Its Dante networking capabilities allow users to expand and customize their audio system with multiple units, creating a scalable and efficient workflow.

Reliability is key in live sound environments, and the Rio3224-D2 delivers. It features dual redundant power supply units, preventing power failures from disrupting performances. Primary and secondary Dante connections provide network redundancy, ensuring uninterrupted audio transmission. These fail-safe features make it a trusted choice for concerts, theaters, houses of worship, and corporate events.

A built-in character/icon display allows for quick and easy monitoring of metering, gain, high-pass filters, and phantom power settings. This intuitive interface ensures precise control and quick adjustments, even in high-pressure live scenarios. The Gain Compensation function automatically adjusts digital gain to prevent volume inconsistencies when multiple consoles share the same I/O rack, maintaining a balanced mix throughout the performance.

Built for touring and fixed installations, the Rio3224-D2 boasts a rugged yet compact design, ensuring durability and ease of transport. Whether for concert venues, recording studios, or live broadcasts, this versatile Dante I/O rack delivers industry-leading audio performance, reliability, and flexibility.
